Code:
WCPR-3060(v. 1.0)

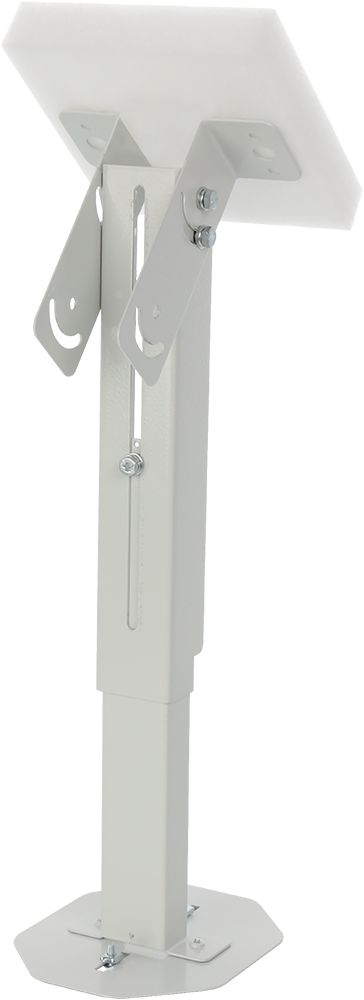

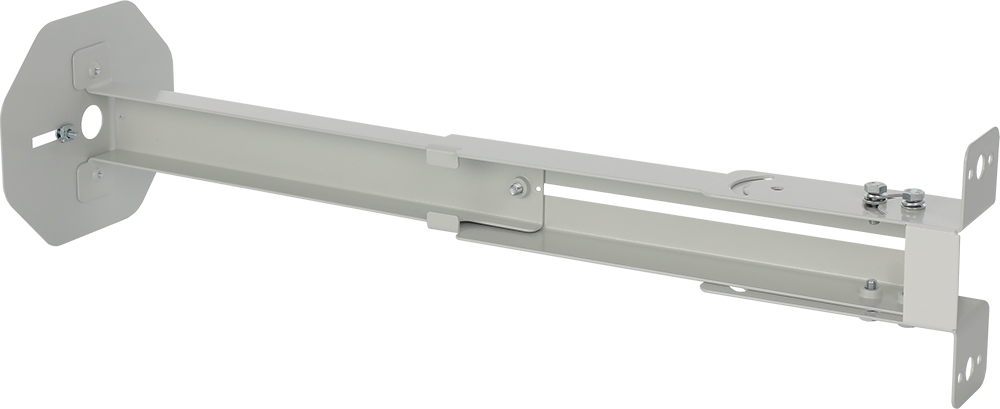

Name:Extension arm for point detectors, adjustable 30–60 cm; 0–50°
| Destination |

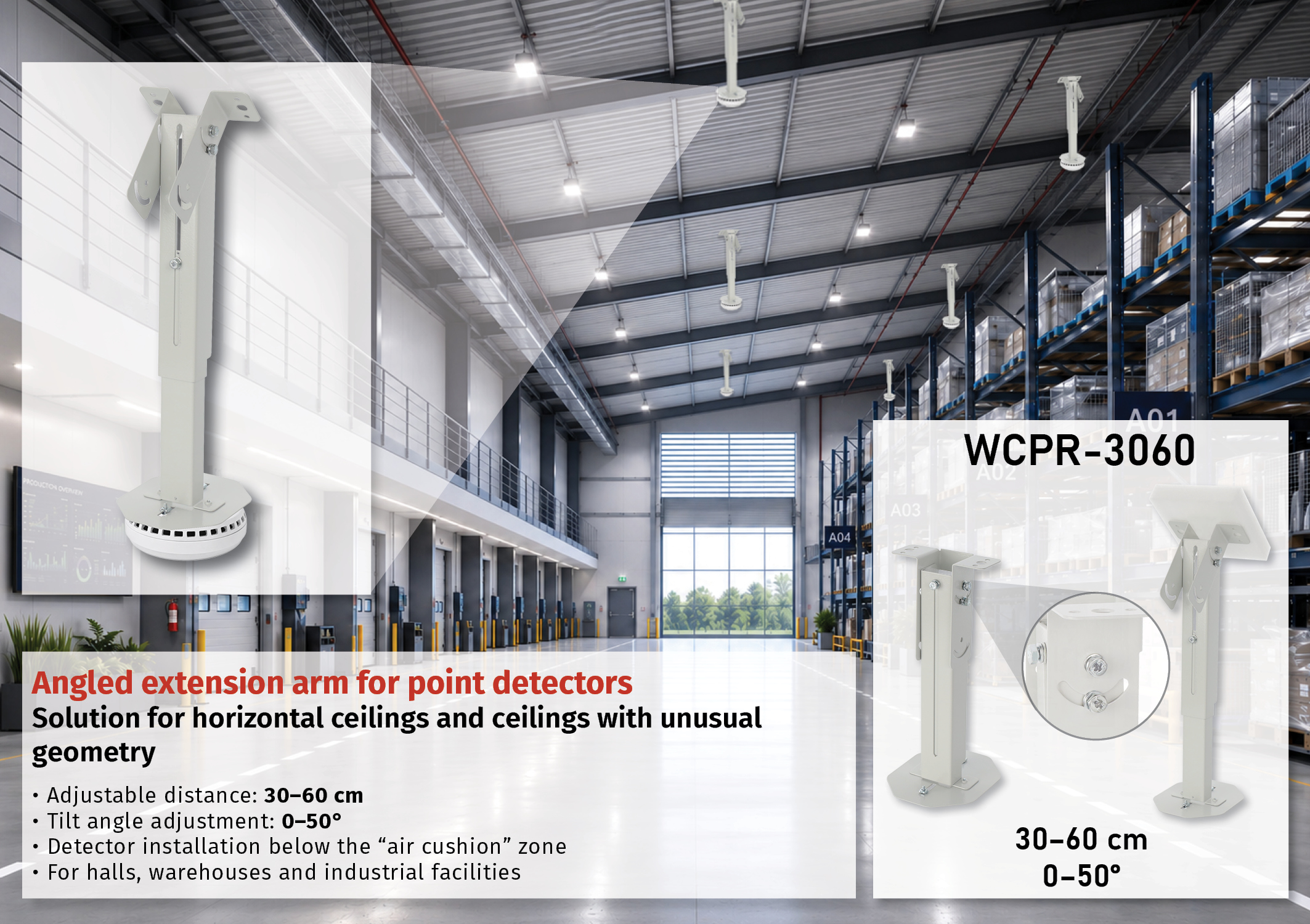

The extension arm for point detectors is designed for installing smoke or multi-sensor detectors in rooms with
ceiling heights from 6 to 12 m. It allows the detector to be positioned at a distance from the ceiling in accordance with fire
alarm system design guidelines, ensuring proper smoke detection in high-ceiling rooms and reducing the effect of the hot gas
layer beneath the ceiling. |
| Mounting dimensions | 300÷600 mm |

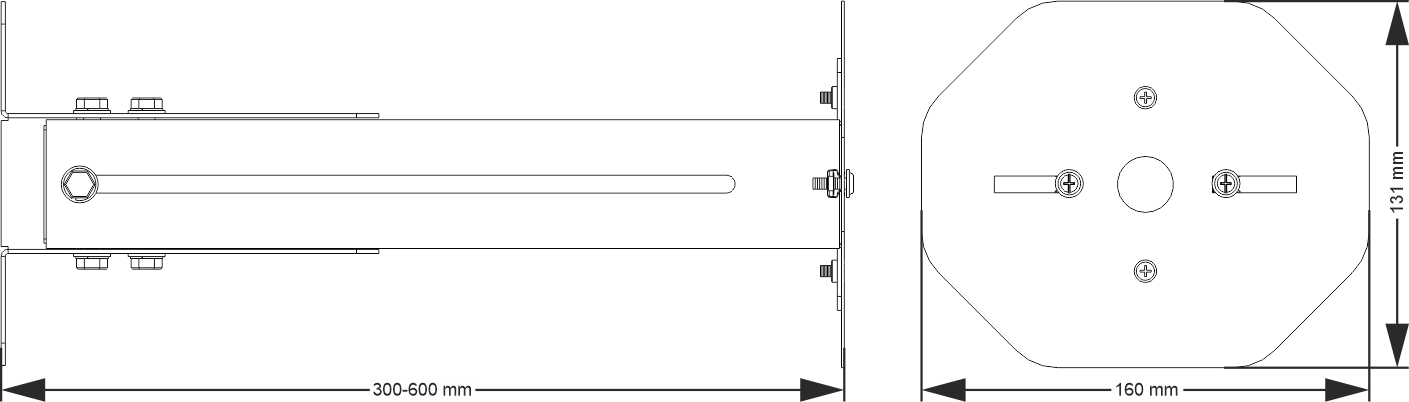

| Dimensions | 300 x 131 x 160 [+/-2 mm] |
| Material |
steel DC01, 1.5mm, RAL7035 (grey), metallic |
| Warranty | 2 years |
Intended use
