Kód:
PCSB-12V10A-C(v. 1.0)

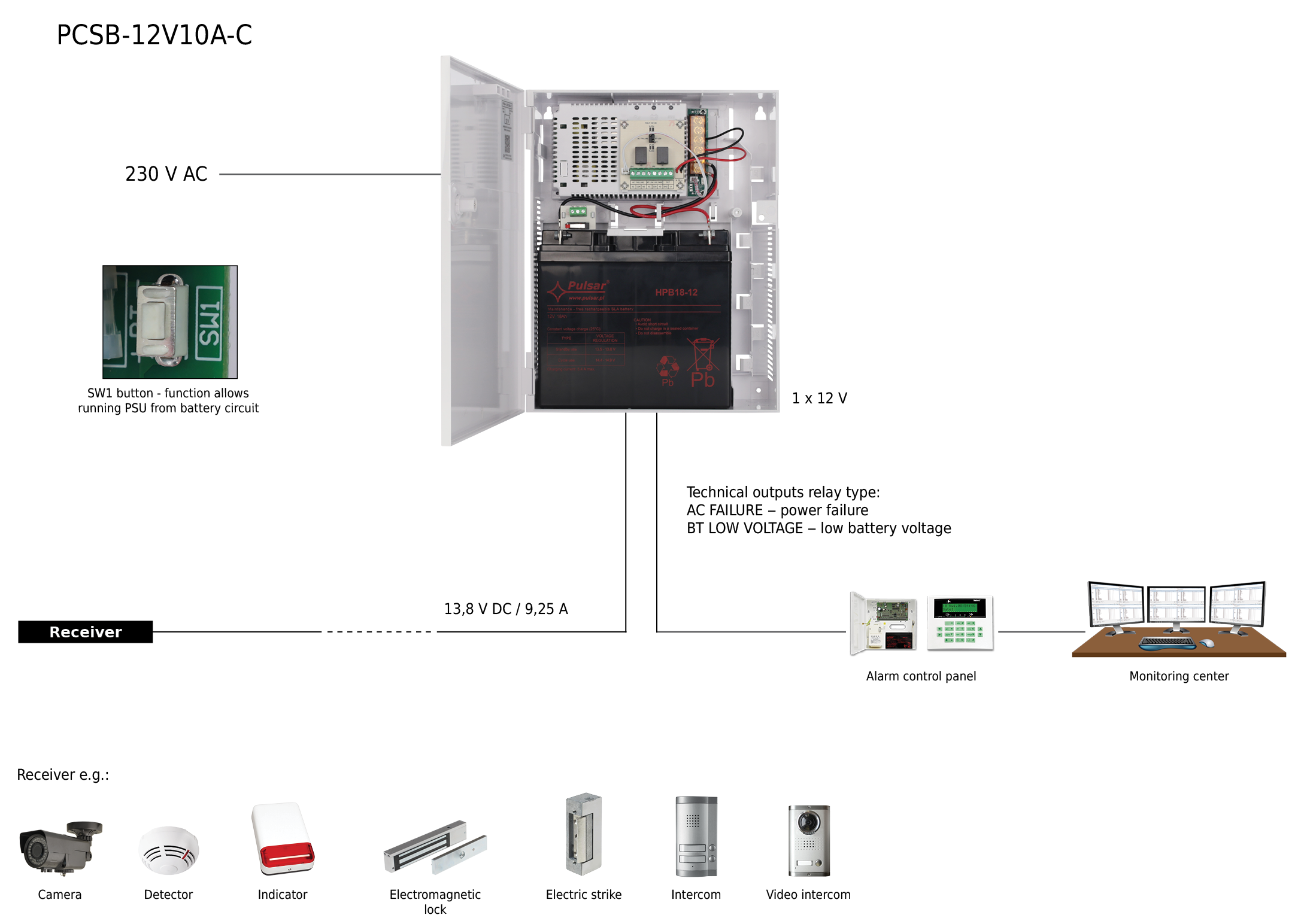

Názov:PCSB 13,8V/10A/17Ah battery backup switch mode power supply unit with technical outputs
| Výstup napájania |
10 A / 13.8 V DC / 138 W (total output current with charging) SW1 button - function allows running PSU from battery circuit |
| Prúd nabíjania akumulátora | 0.75A |
| Akumulátor |
1 x 17Ah / 1 x 20Ah Miesto na akumulátor: 185 x 168 x 77 [+/-2 mm] |
| Rozmery | 237 x 300 x 92 [+/-2 mm] |
| Zabezpečenia |
, , , , proti prepätiu, |
| Zatváranie | skrutky |
| Montáž | surface-mounted (plastic enclosure) |
| Signalizácia | optická signalizace LED |
| Vyhotovenie |
RAL9003 (biela), plastová |
| Stupeň ochrany EN60529 | IP 20 |
Použitie
Dokumenty
-
Katalógová karta
-
Manuál
-
Information about safety of using product
-
Vyhlásenie CE
-
Product data package
