Code:

SG108 (v. 1.2)

Name:

SG108 10-port PoE switch for 8 IP cameras

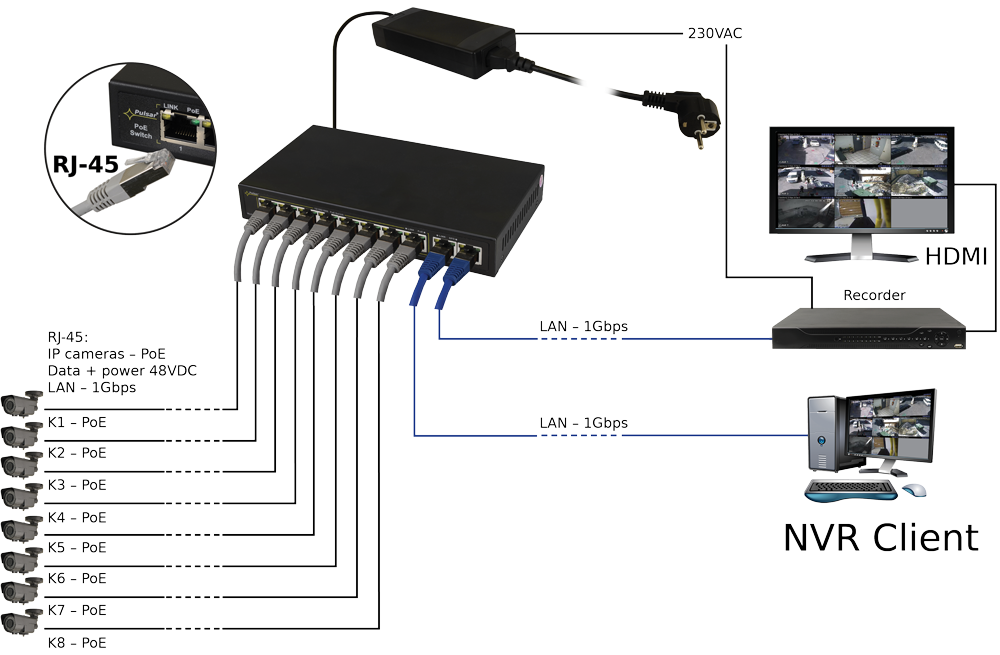

Destination SG108 is a 10-port PoE designed to supply IP cameras operating in the IEEE 802.3af/at standard. Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 8 ports of the switch.
Switch type standard
Power supply 100 - 240 V AC desktop: 120W/2.3A
Ports 10
PoE ports 8 x 1Gb/s - IEEE 802.3af/at (30W), PoE+
52V DC, 30W/port, 96W/all ports
UPLINK ports 2 x 1Gb/s
Dimensions 190 x 27 x 105 [+/-2 mm]
Installation standard
Indication LED optical indication
Warranty 2 years
Notes - set includes sheets mounting switch to surface
