Code:

SFG120WP-BT(v. 1.0)

Name:

SFG120WP-BT 20-port PoE switch without power supply for 16 IP cameras

Destination SFG120WP-BT is a 20-port PoE switch designed to supply IP cameras operating in the IEEE 802.3af/at/bt standard. Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 16 ports of the switch, and HiPoE for ports 1 – 4. The ports marked TP/17-20 are used to connect additional network devices via an RJ45 connector. Switch also has four SFP sockets (marked SFP/17-20), which after using SFP modules (GBICs) enable fiber optic transmission.
Switch type standard

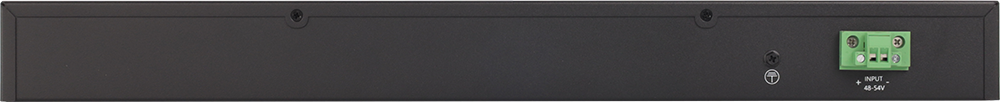

Power supply 48 - 54 V DC, detachable power socket
power supply unit is not included
Ports 20

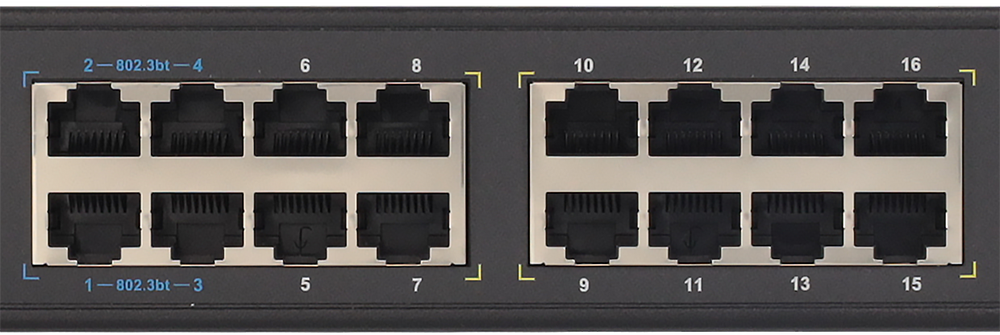

PoE ports 16 x 1 Gb/s - IEEE 802.3af/at, IEEE 802.3af/at/bt, PoE+, PoE++
52V DC, 30W/port, 60W/port, 240W/all ports
Tryb Long Range: OFF – 100m/1Gb/s or ON – 250m/10Mb/s (9÷16 ports)
VLAN
Storm control

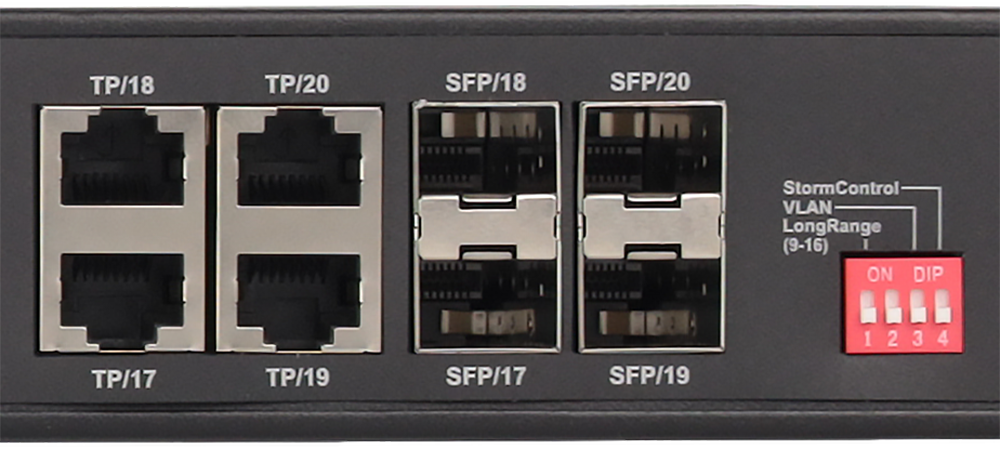

UPLINK ports RJ45 4 x 1 Gb/s - TP/17-20
SFP UPLINK sockets 4 x 1 Gb/s - SFP/17-20
17/TP i 17/SFP ...... 20/TP i 20/SFP – nie mogą pracować jednocześnie - typ COMBO
Mounting dimensions 1U
Dimensions 442 x 44 x 270 [+/-2 mm]

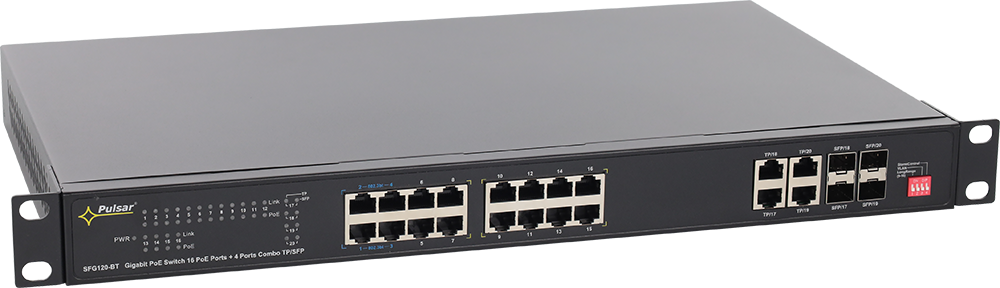

Installation standard / RACK 19"

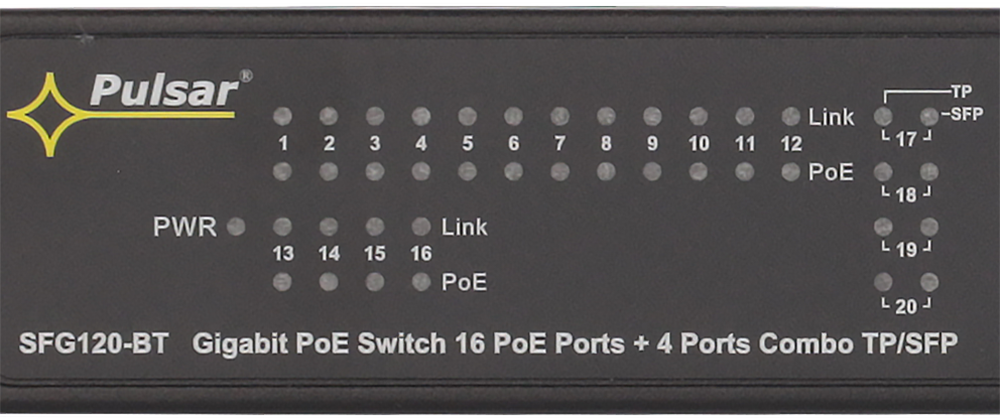

Indication LED optical indication
Warranty 2 years

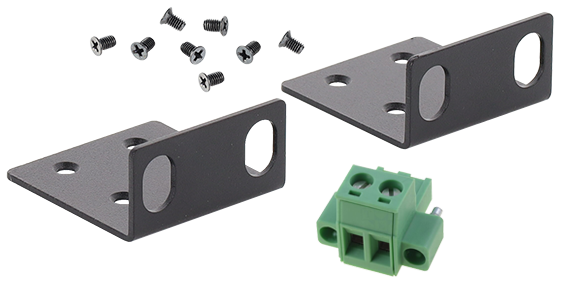

Notes - additional mounting elements – mounting brackets for RACK
galeria

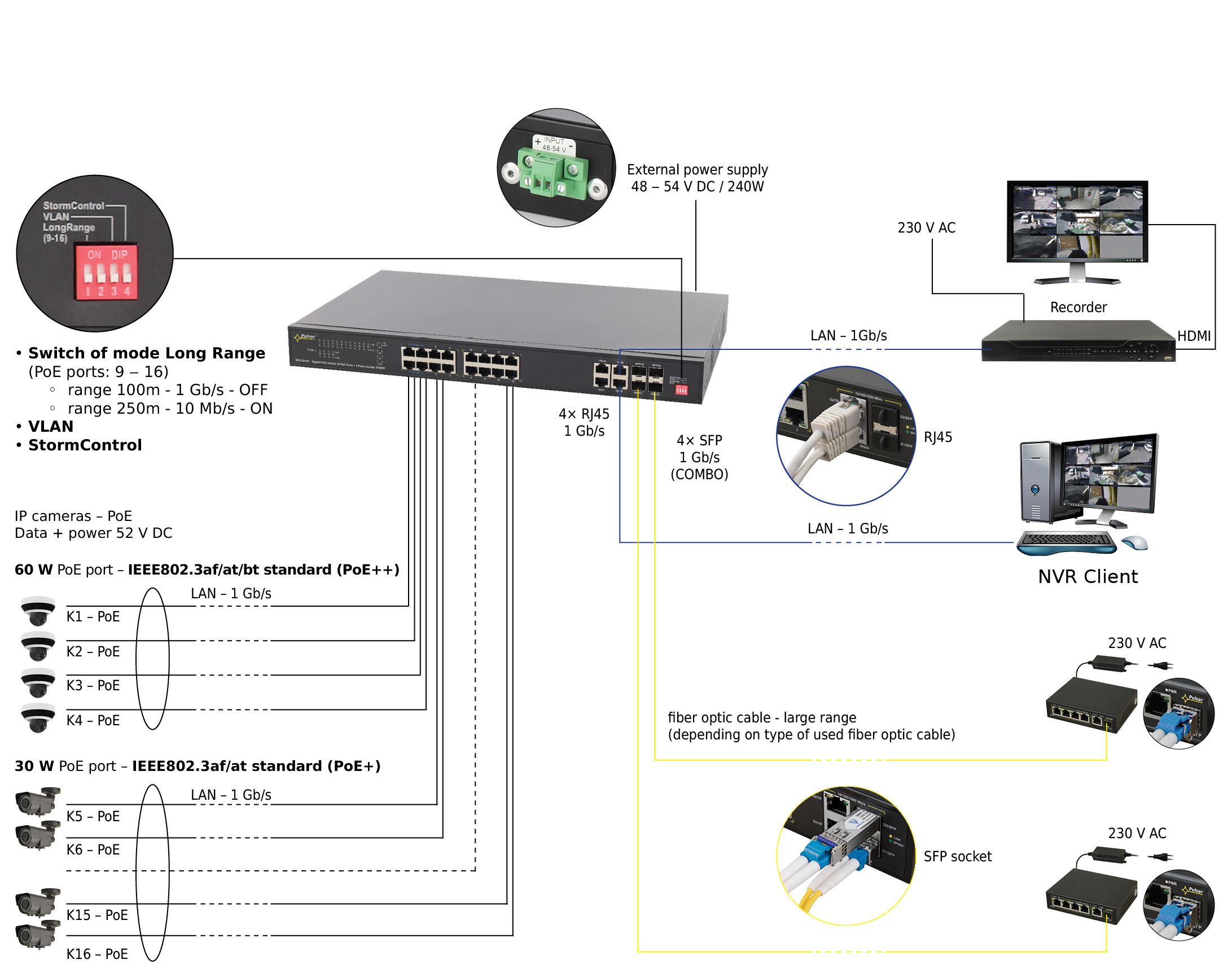

Intended use
