Code:

SF124(v. 1.1)

Name:

SF124 24-port PoE switch for 24 IP cameras

Destination SF124 is a 24-port PoE designed to supply IP cameras operating in the IEEE 802.3af/at standard. Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 24 ports of the switch.
Switch type standard
Power supply 100 - 240 V AC
Ports 26
PoE ports 24 x 10/100 Mb/s - IEEE 802.3af/at, PoE+
52V DC, 30W/port, 240W/all ports
UPLINK ports RJ45 2 x 1 Gb/s - G1/TP, G2/TP
SFP UPLINK sockets 2 x 1 Gb/s - G1/SFP, G2/SFP
G1/TP and G1/SFP – can not operate simultaneously
G2/TP and G2/SFP – can not operate simultaneously
Mounting dimensions 1U
Dimensions 442 x 44 x 224 [+/-2 mm]
Installation standard / RACK 19"
Indication LED optical indication
Warranty 2 years
Notes - additional mounting elements – mounting brackets for RACK
galeria

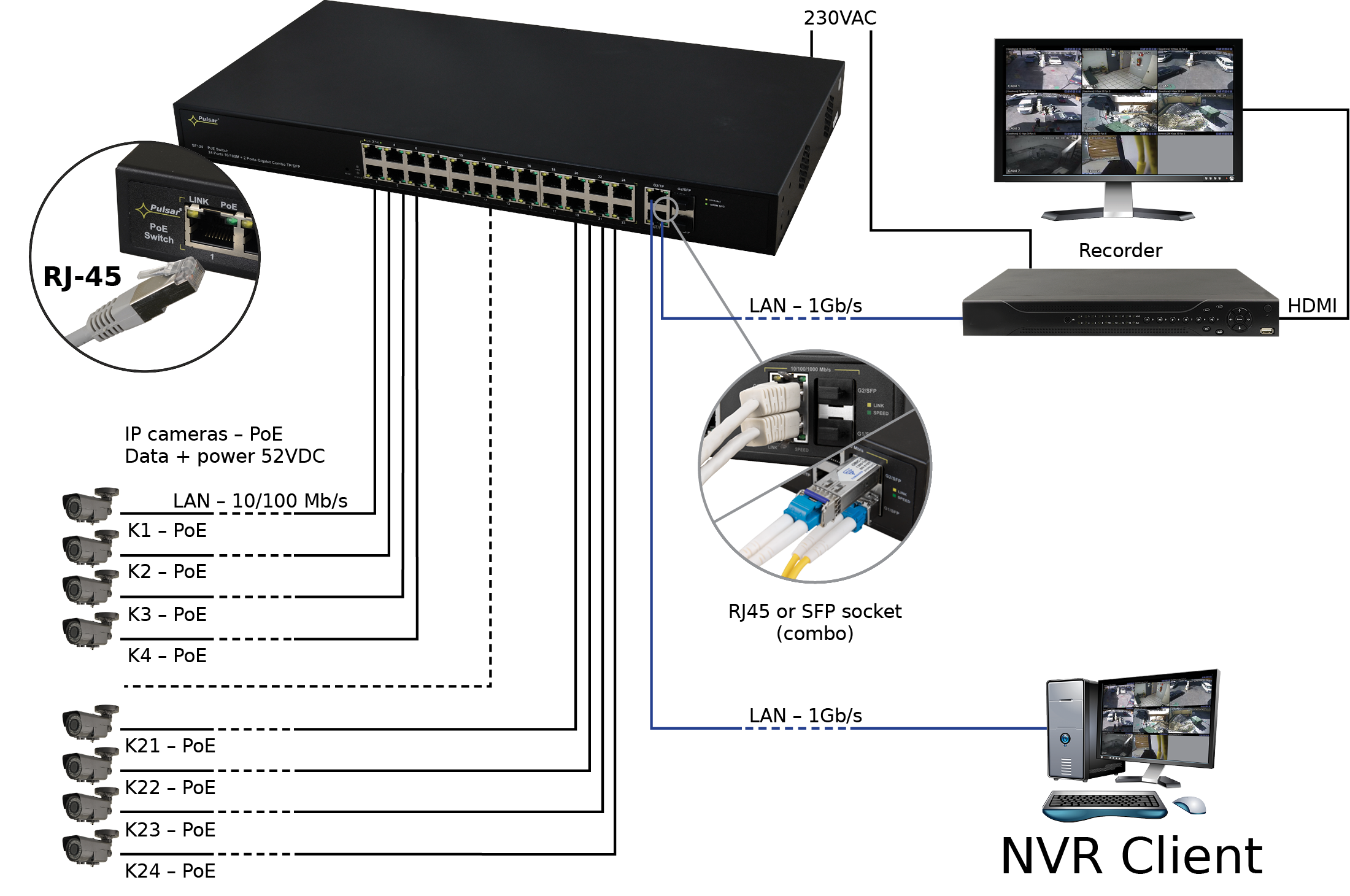

Intended use

SF124_EN_

Documents
