Code:

AWO529 (v. 1.6)

Name:

DVR/SMALL/VERTICAL enclosure

Destination CCTV recorders

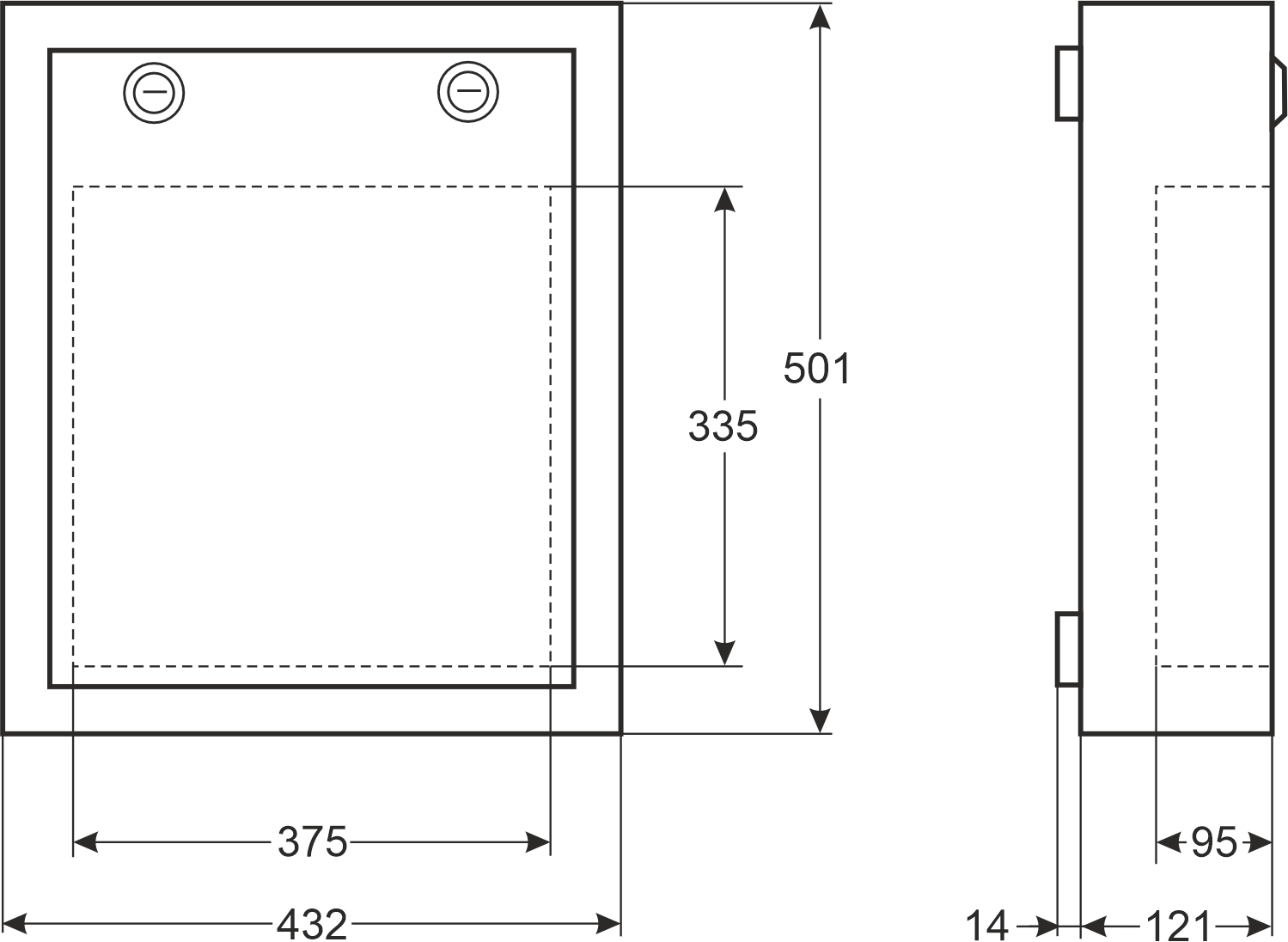

Dimensions 432 x 501 x 121 [+/-2 mm]
distance from surface: 14 mm
Dimensions of recorder space 375 x 335 x 95 [+/-2 mm]
enclosure is fitted with straps for mounting recorder, vertical installation of recorder
Protections tamper – opening of enclosure, tamper – detachment from the wall
Closing lock (2xMR008, various code)
Housing construction is compliant with requirements of General Data Protection Regulation GDPR, as personal data must be protected and stored securely
Installation surface-mounted
Material steel DC01, 1mm, RAL9005 (black), metallic
Protection grade EN60529 IP 20
Warranty 2 years
galeria

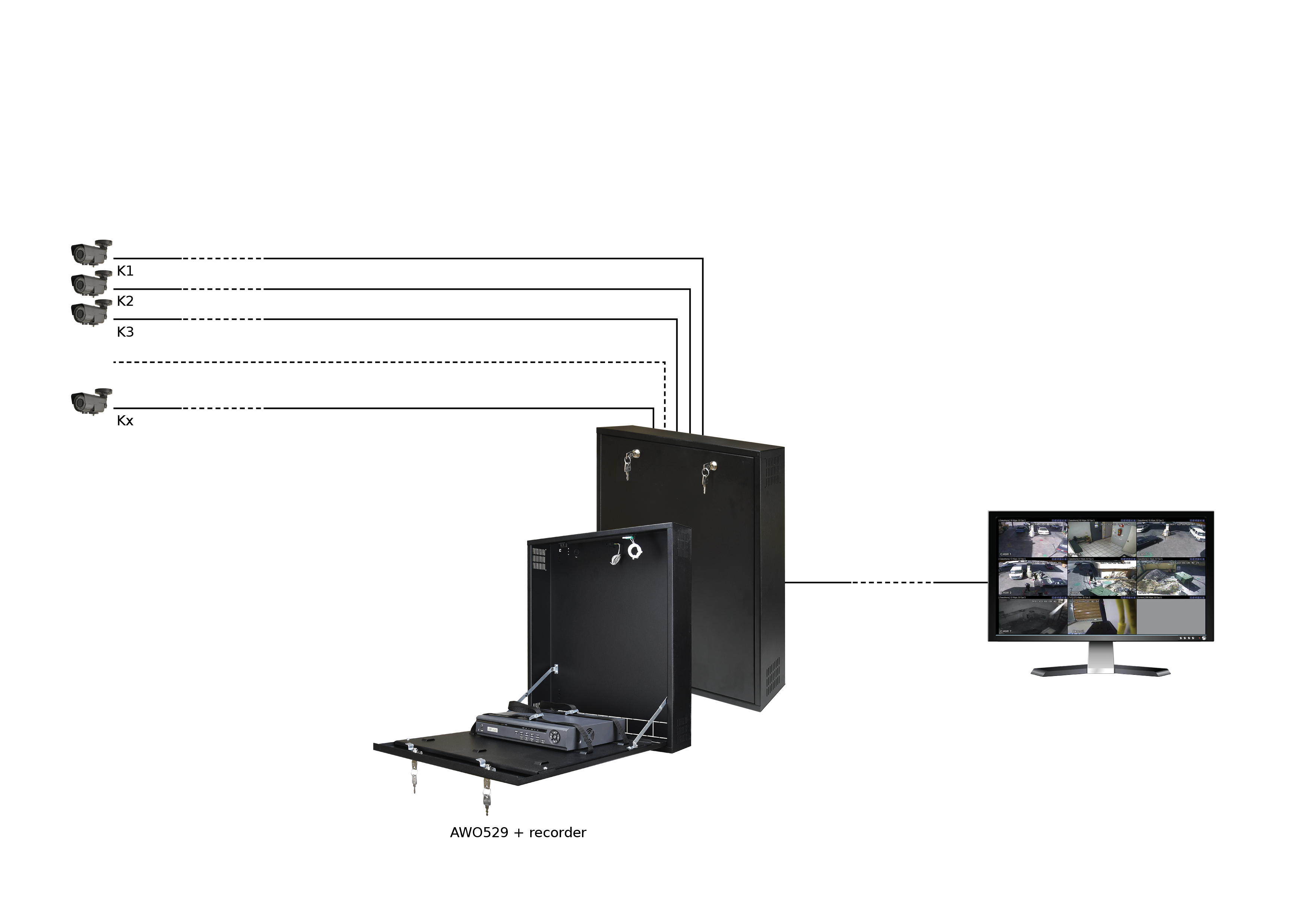

Intended use

AWO529_EN_

Documents
