S108B 10-port switch with buffer power supply for 8 PoE devices

Products

Switches and PoE devices breadcrumbs

Power supply	200 - 240 V AC
Ports	10
PoE ports	8 x 10/100 Mb/s - IEEE 802.3af/at, PoE+ 52V DC, 30W/port, 120W/all ports Long Range mode: STANDARD – 100m/100 Mb/s or EXTEND – 250m/10 Mb/s (1÷8 ports) VLAN
UPLINK ports RJ45	2 x 10/100 Mb/s
Power supply output	function START allows running PSU from battery power
Battery charging current	0.5A
Battery	2 x 12Ah
Efficiency	87%

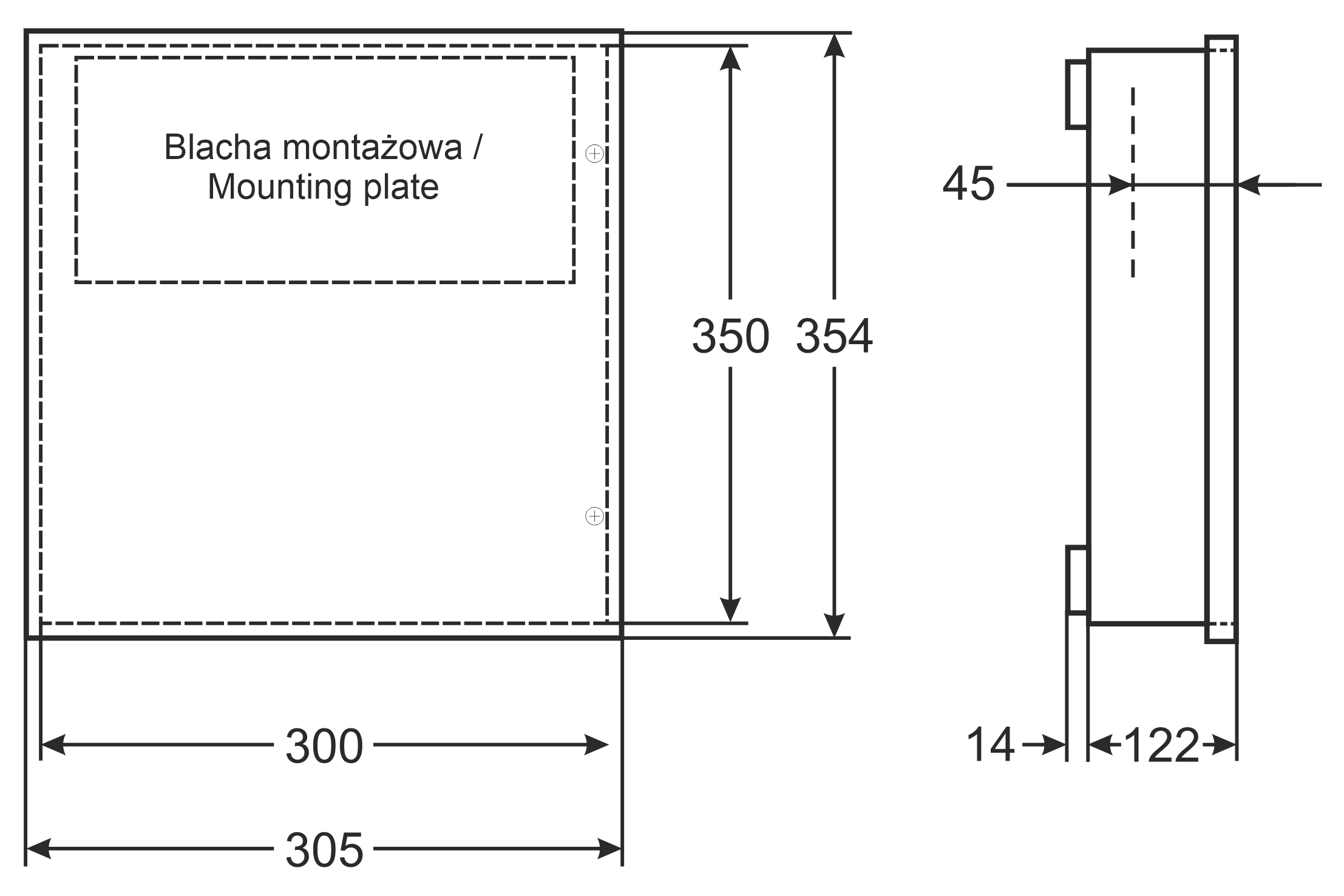

Dimensions	300 x 350 x 122 [+/-2 mm] distance from surface: 14 mm
External dimensions of front panel	305 x 354 [mm]
Mounting plate	sheet, 250 x 180 [+/-2 mm]
Protections	OVP, OLP, UVP, tamper – opening of enclosure, SCP
Closing	bolted (lock assembly possible)
Installation	surface-mounted
Indication	LED optical indication
Material	steel DC01, 1mm, RAL9003 (white), metallic
Warranty	2 years
