Code:

SG108B(v. 1.0)

Name:

SG108B 10-port switch with buffer power supply for 8 PoE devices

Power supply 200 - 240 V AC
Ports 10
PoE ports 8 x 1 Gb/s - IEEE 802.3af/at, PoE+
52V DC, 30W/port, 120W/all ports
UPLINK ports RJ45 2 x 1 Gb/s
Power supply output function START allows running PSU from battery power
Battery charging current 0.5A
Battery 2 x 12Ah
Efficiency 87%

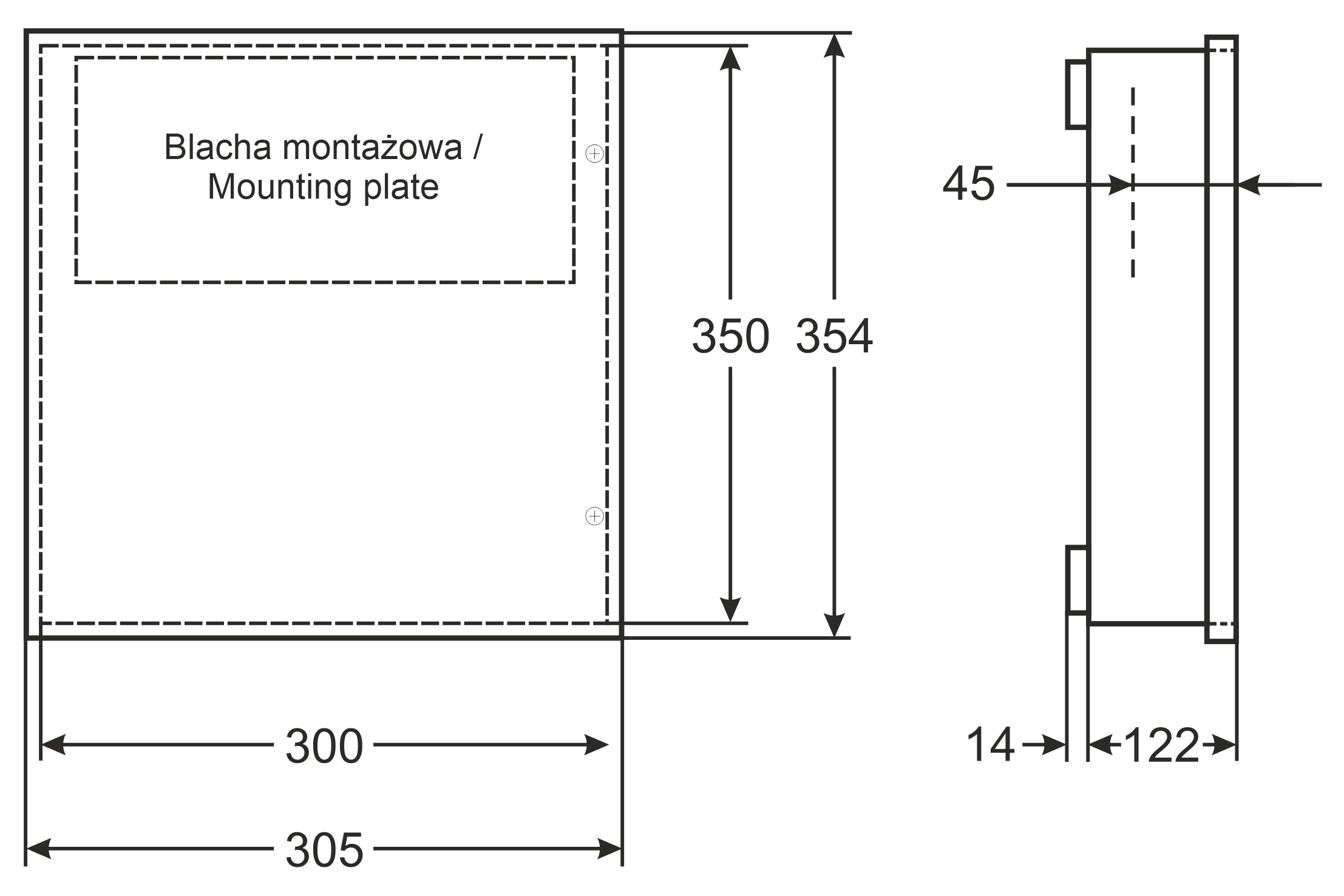

Dimensions 300 x 350 x 122 [+/-2 mm]
distance from surface: 14 mm
External dimensions of front panel 305 x 354 [mm]
Mounting plate sheet, 250 x 180 [+/-2 mm]
Protections OVP, OLP, UVP, tamper – opening of enclosure, SCP
Closing bolted (lock assembly possible)
Installation surface-mounted
Indication LED optical indication
Material steel DC01, 1mm, RAL9003 (white), metallic
Warranty 2 years
