Code:
EXT-POEG4H(v. 1.0)

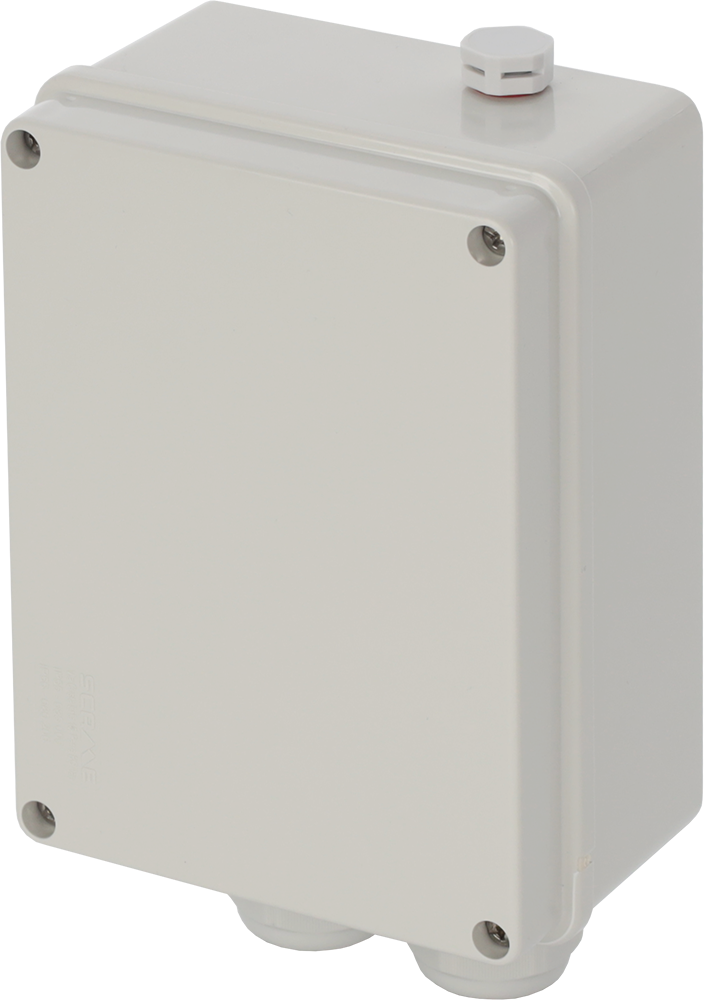

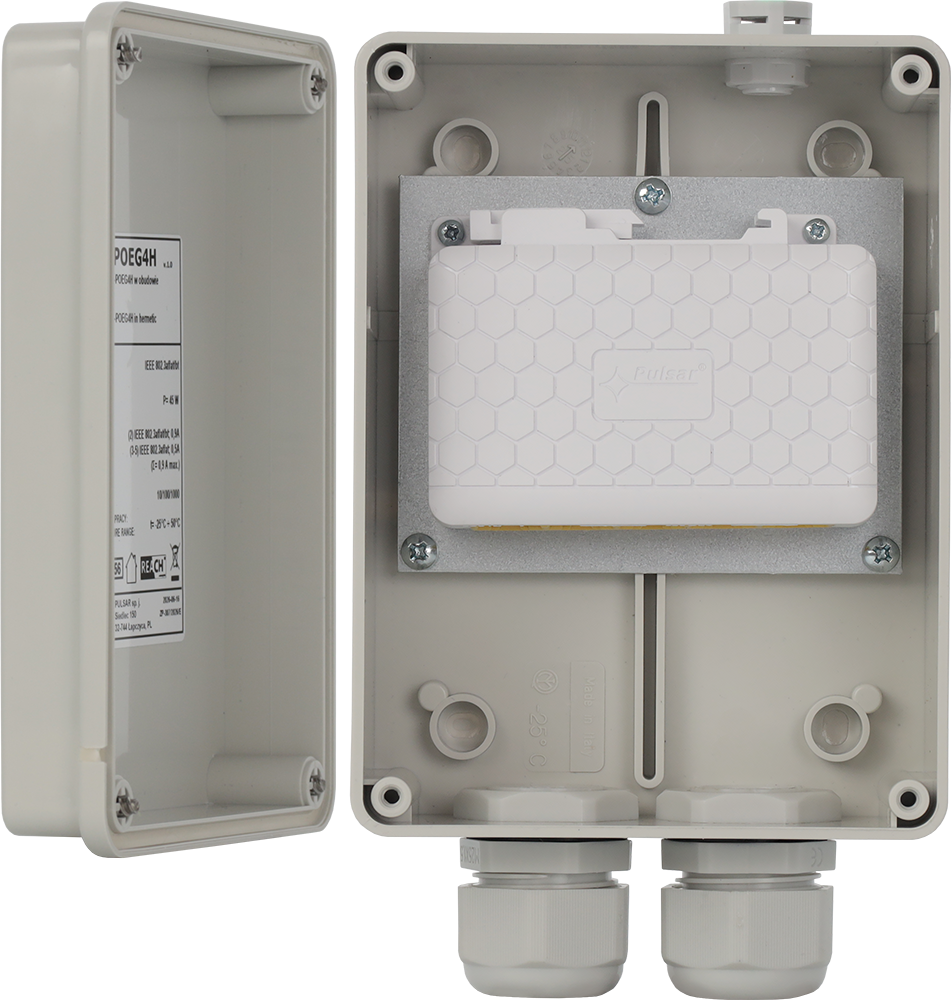

Name:Extender EXT-POEG4H in hermetic enclosure
| Destination |

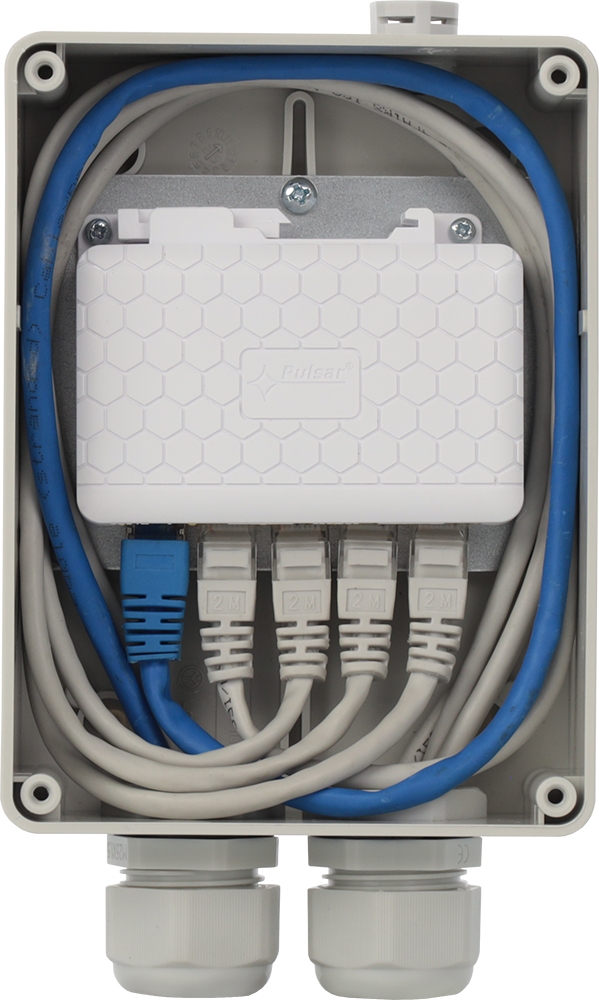

Increases Ethernet and PoE power range by 100 meters. Allows connection of four PoE IP cameras using one cable |
| Power supply |
48 - 57 V DC power supply from PoE switch |
| Dimensions | 158 x 118 x 77 [+/-2 mm] |
| Glands | 2 x Φ=13÷18mm |
| Operating conditions | -25°C ÷ 50°C |
| Protections |
OLP, SCP |
| PoE input | PoE IN: IEEE 802.3af/at/bt |
| PoE output |
PoE OUT2: IEEE 802.3af/at/bt PoE OUT3: IEEE 802.3af/at PoE OUT4: IEEE 802.3af/at PoE OUT5: IEEE 802.3af/at VLAN mode switch |
| Total output power | 45W |
| Protection grade EN60529 | IP 56 |
| Warranty | 2 years |
| Notes |

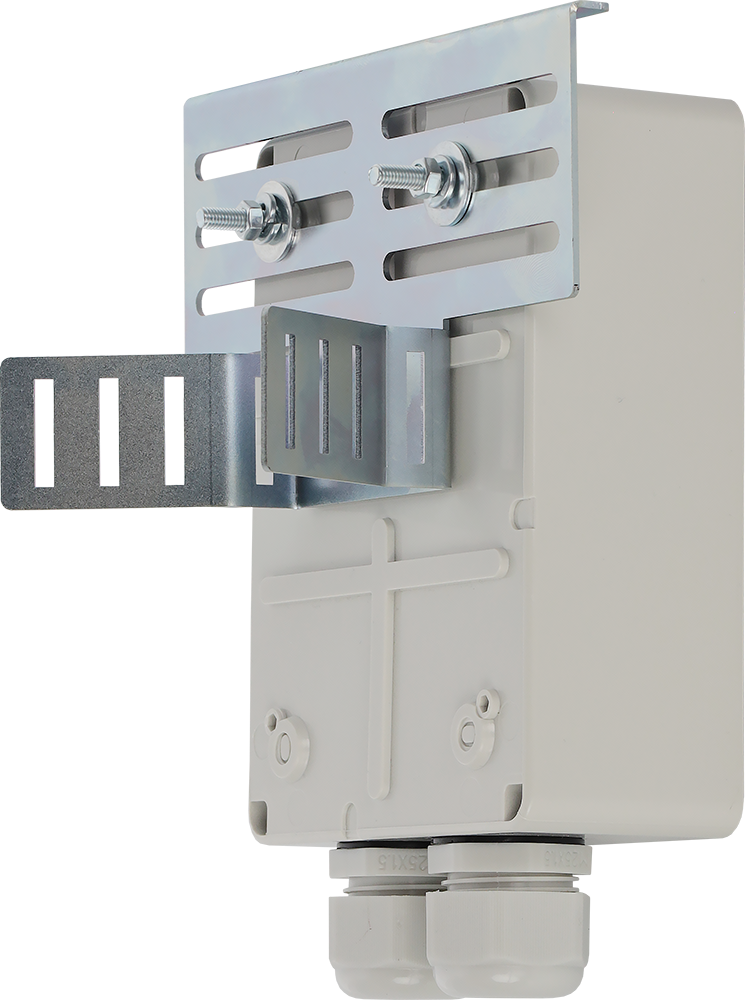

- designed for use in 10/100/1000 Mb/s networks - possibility of pole mounting (requires USH-1 adapter -optional accessory) |
