Code:

RDS(v. 1.0)

Name:

Fuse module with 8 outputs; 10–60 V RACK 19" 1U

Destination The RDS fuse module is designed for power distribution in systems based on RSG2 and RWB series power supplies. It provides protection and power distribution for 8 independent AUX outputs. It is possible to connect additional RDS modules in cascade.
Power supply 10 - 60 V DC
INPUT – 2-pin pluggable screw connector (7.62mm pitch)
Power supply output 8 x 1 A (capability to use fuses up to 4 A)
AUX1...8 – 2-pin pluggable screw connector (5.08mm pitch)
OUTPUT - power output for connecting an additional module or other devices /
Fuse 8 x 1A (glass fuse)
Input / output 1 / 8
junction module
Mounting dimensions 19" x 1U

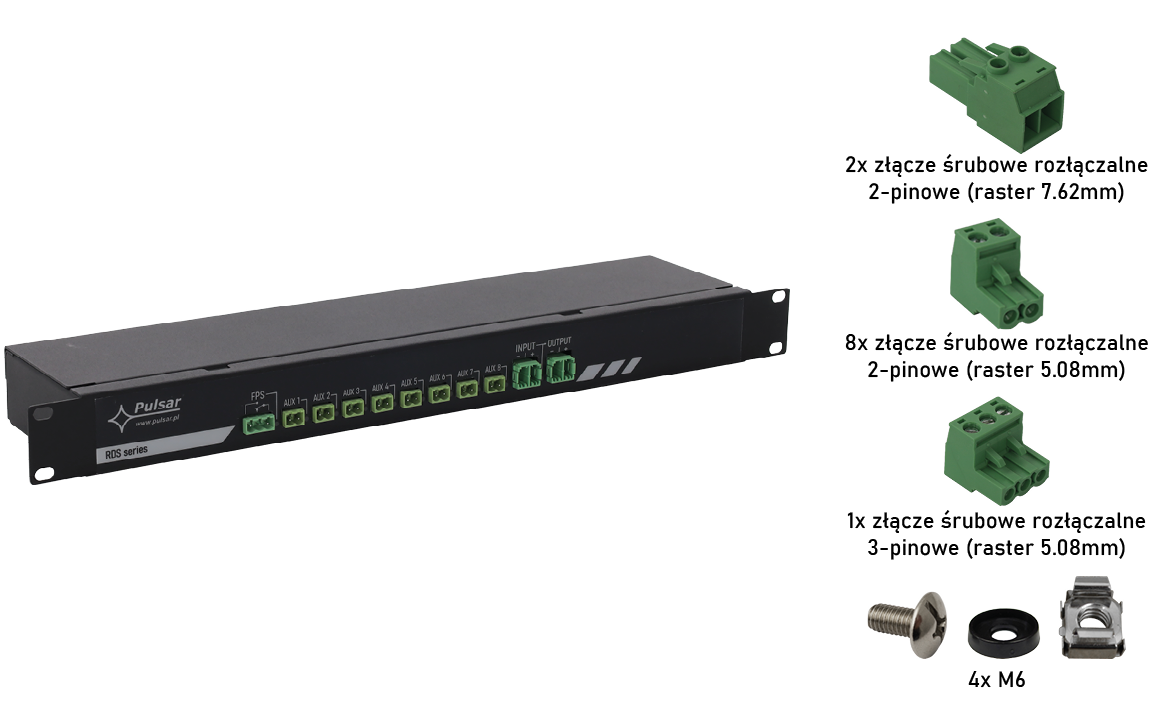

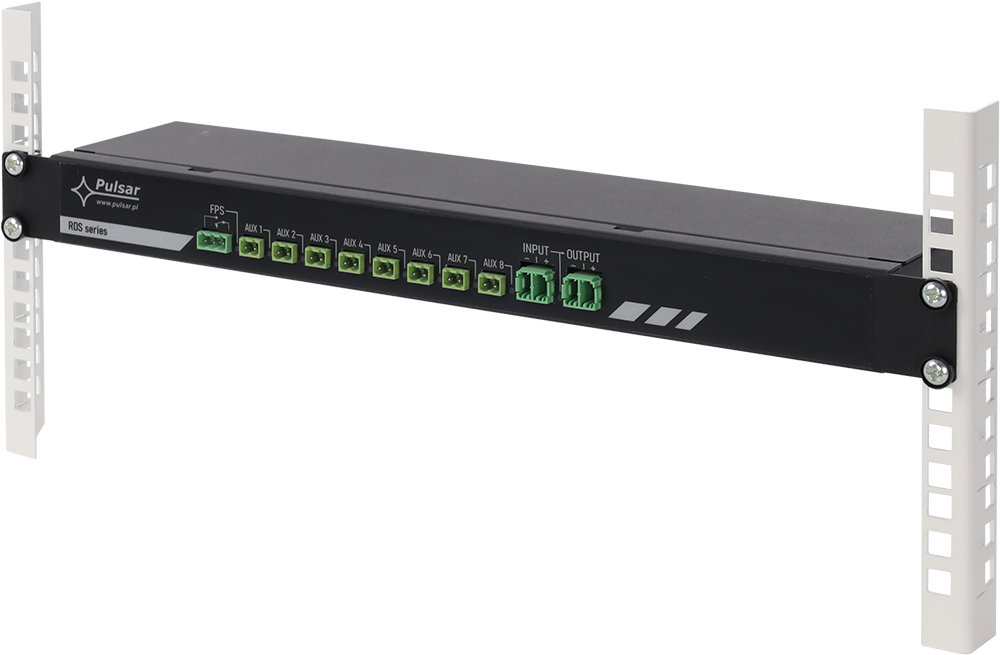

front mounting, 4 M6 screws + cage nuts included
Technical outputs relay type FPS – indication of output fuse activation
technical output – 3-pin pluggable screw connector (5.08mm pitch)

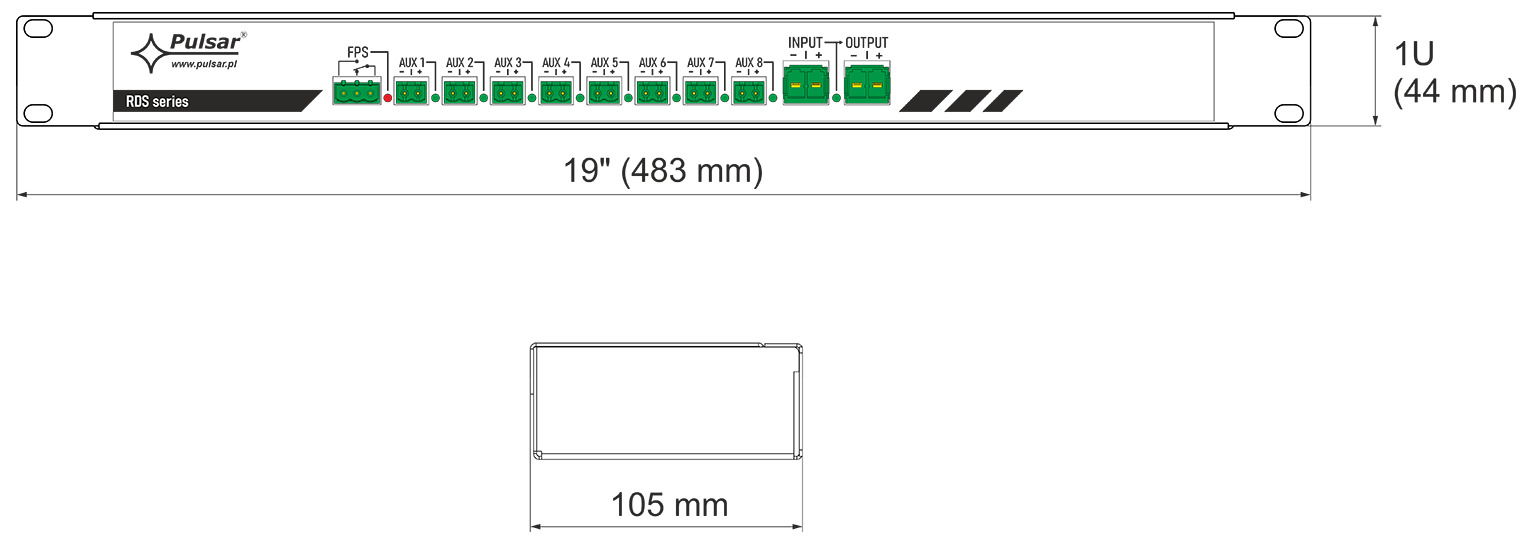

Dimensions 483 x 44 x 105 [+/-2 mm]
Protections SCP
Indication LED optical indication
Warranty 2 years
