Code:
AWO817(v. 1.0)

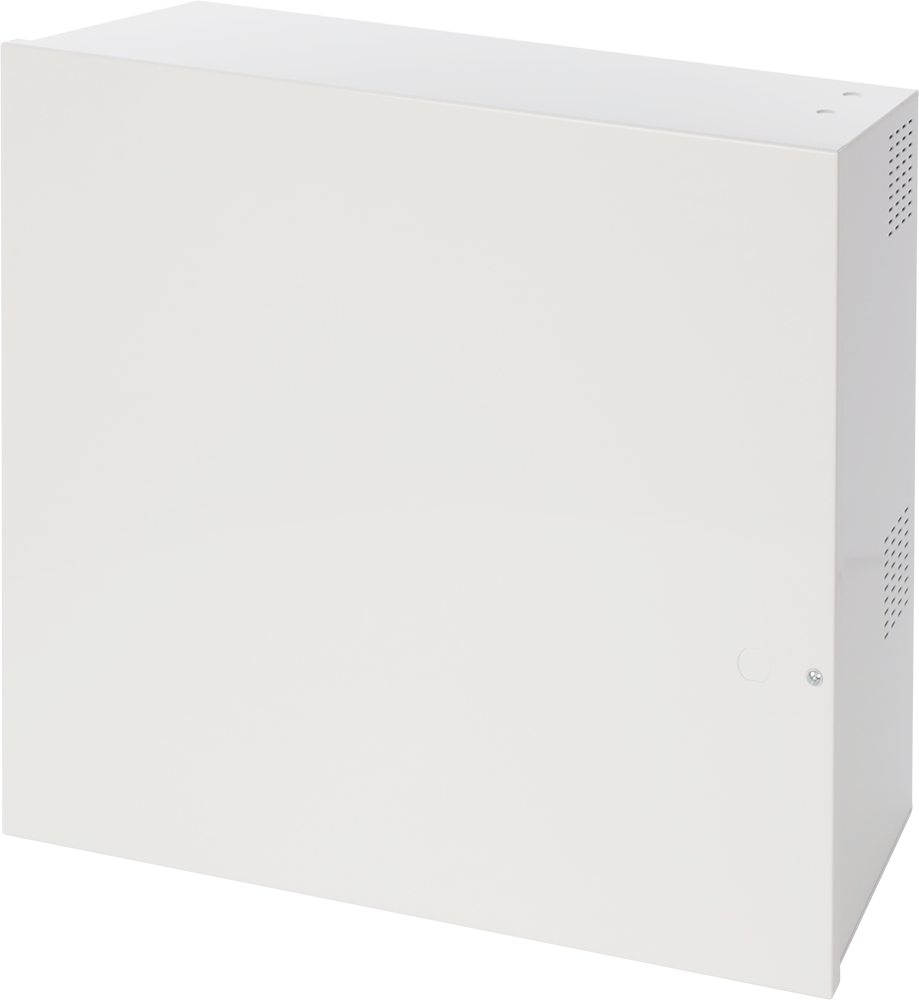

Name:Wall-mounted enclosure for 2x 65Ah batteries
| Destination |

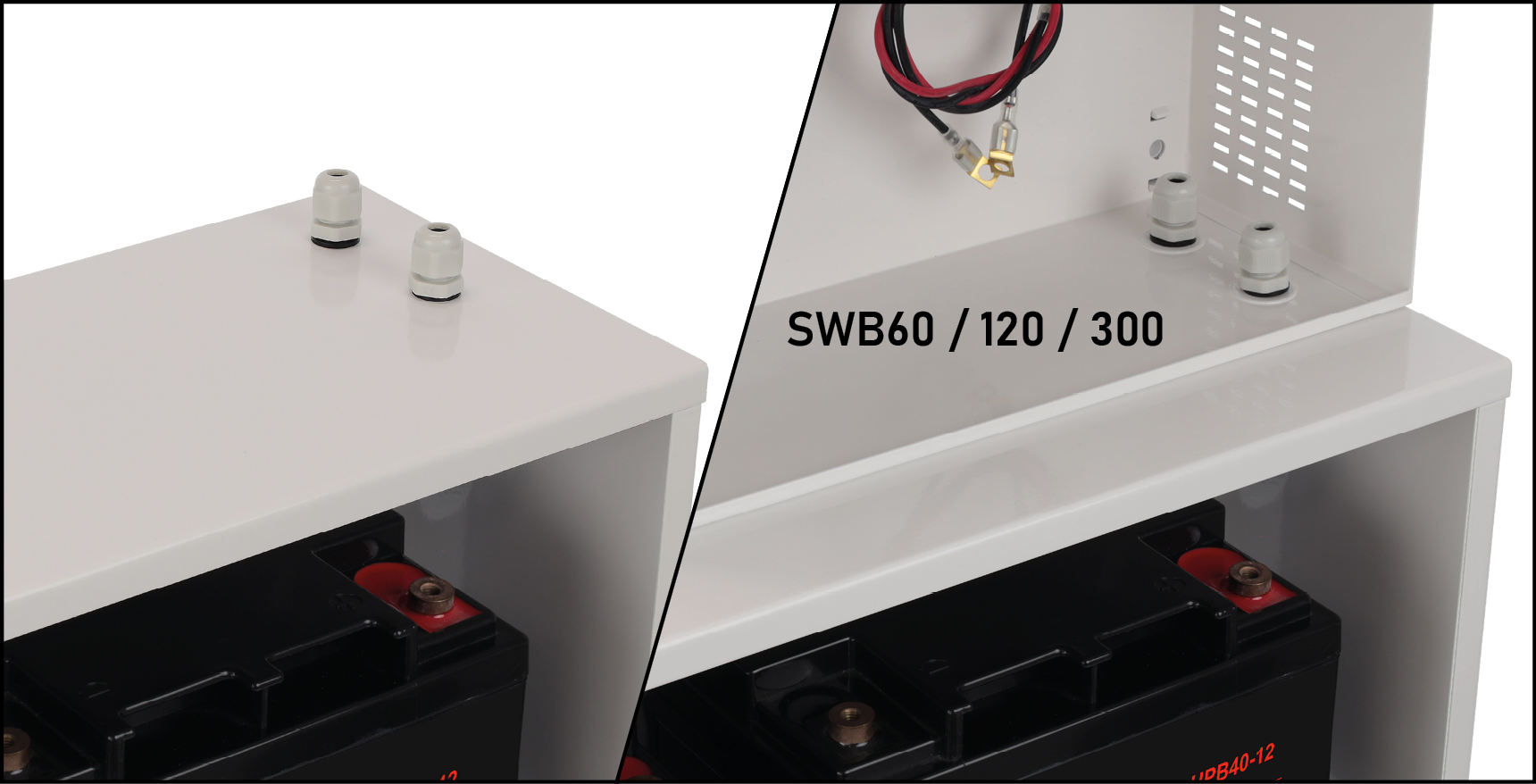

Battery enclosure dedicated to power supply systems for PoE switches requiring a long backup time for connected devices. Compatible with SWB and SWR series PoE switch power supply systems. |
| Dimensions of battery space |

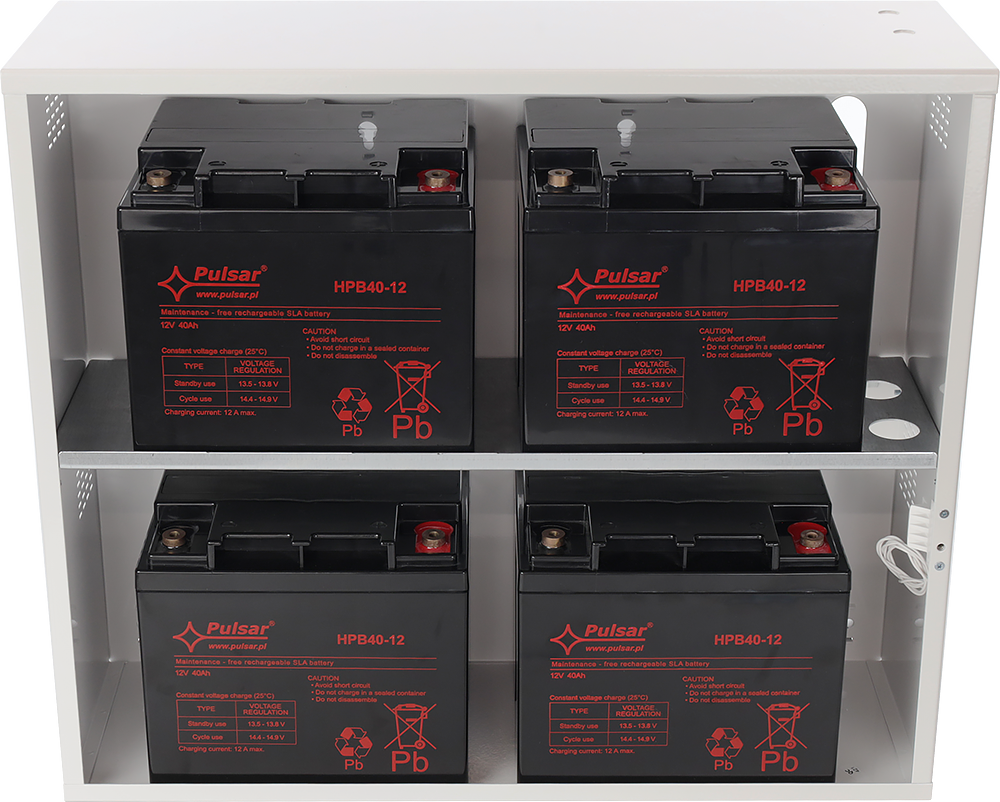

2 x 65Ah / 4 x 40Ah 2 x 505 x 210 x 170 [+/-2 mm] |
| Dimensions |
535 x 460 x 173 [+/-2 mm] distance from surface: 14 mm |
| External dimensions of front panel | 540 x 465 [mm] |
| Operating conditions | -10°C ÷ 40°C |
| Protections |
Tamper protection - opening enclosure 0.5A / 50 V DC, NC - normally closed |
| Closing | bolted (lock assembly possible) |
| Material |
steel DC01, 1.2mm, 1mm, 1.5mm, RAL9003 (white), metallic |
| Protection grade EN60529 | IP 20 |
| Warranty | 2 years |
| Notes |
- possibility of mounting tamper switch PKAZ067 detects detachment from the wall |
