Code:
AWO585P(v. 1.0)
Name:2x3 DIN Rail enclosure
| Destination |
These enclosures are designed for the DIN rail mounting of ICT company access control system devices, including: Controller Modules: PRT-CTRL-DIN-.... / PRT-WX-DIN-… Expander Modules: PRT-RDM2-DIN-… / PRT-HRDM-DIN-… / PRT-ZX16-DIN-… / ......... Power Supply Modules: PRT-PSU-DIN-… The design allows for the mounting of ICT modules in both full-size and half-size formats. |
| Installation of control panels | ICT |

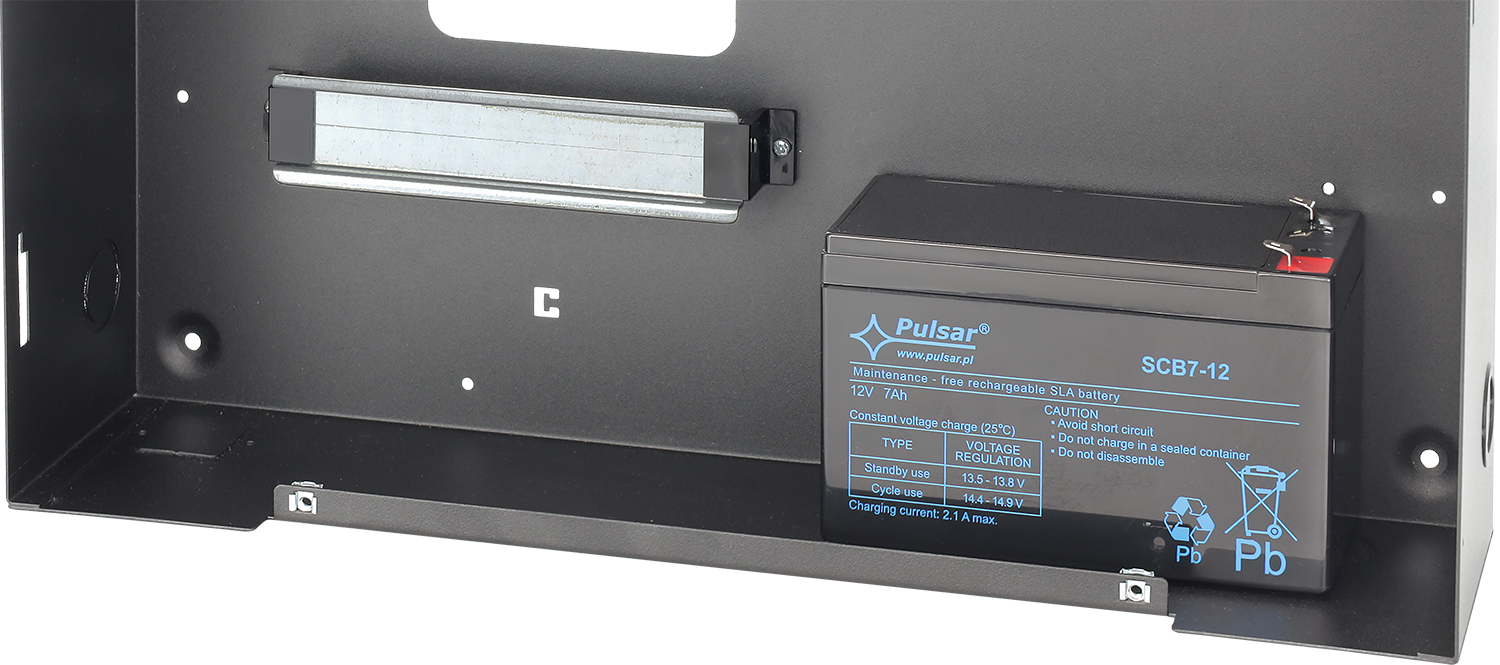

| Dimensions of battery space | 1 x 7Ah |
| Dimensions |
434 x 541 x 99 [+/-2 mm] distance from surface: 3 mm |
| Protections |

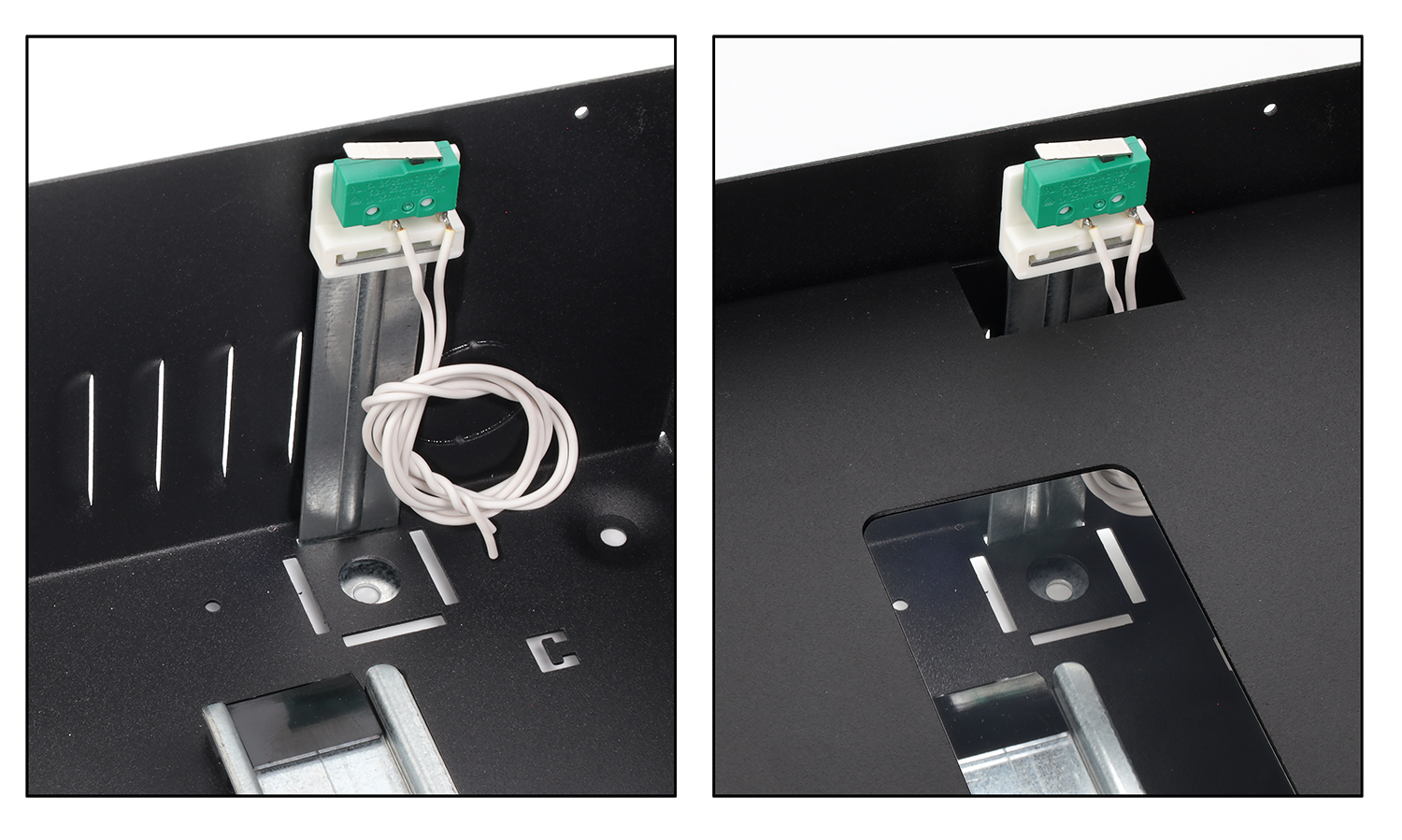

Tamper protection - opening enclosure, removal from the wall 0.5A / 50 V DC, NC - normally closed |

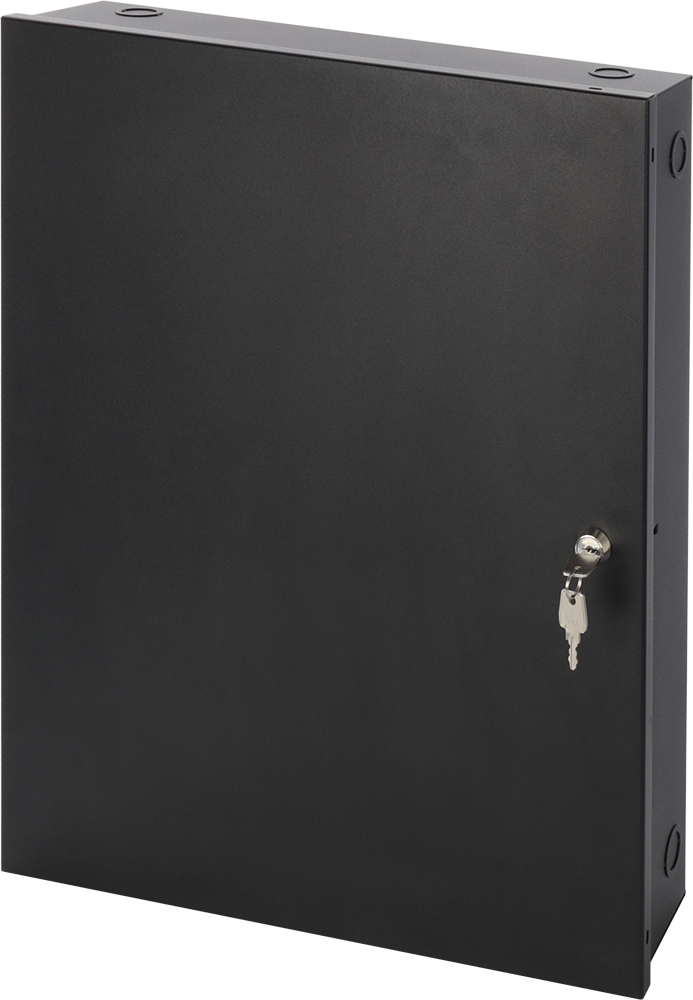

| Closing | Key lock |

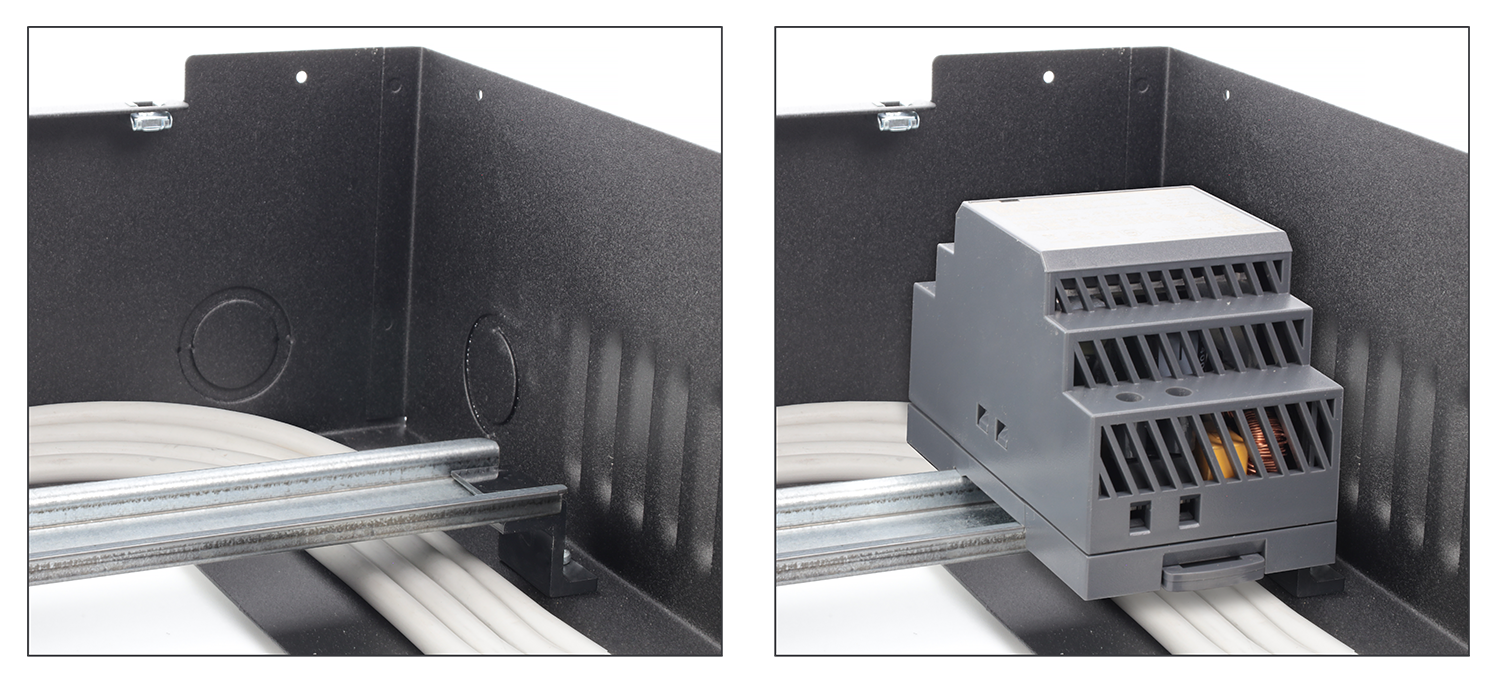

| DIN rail |

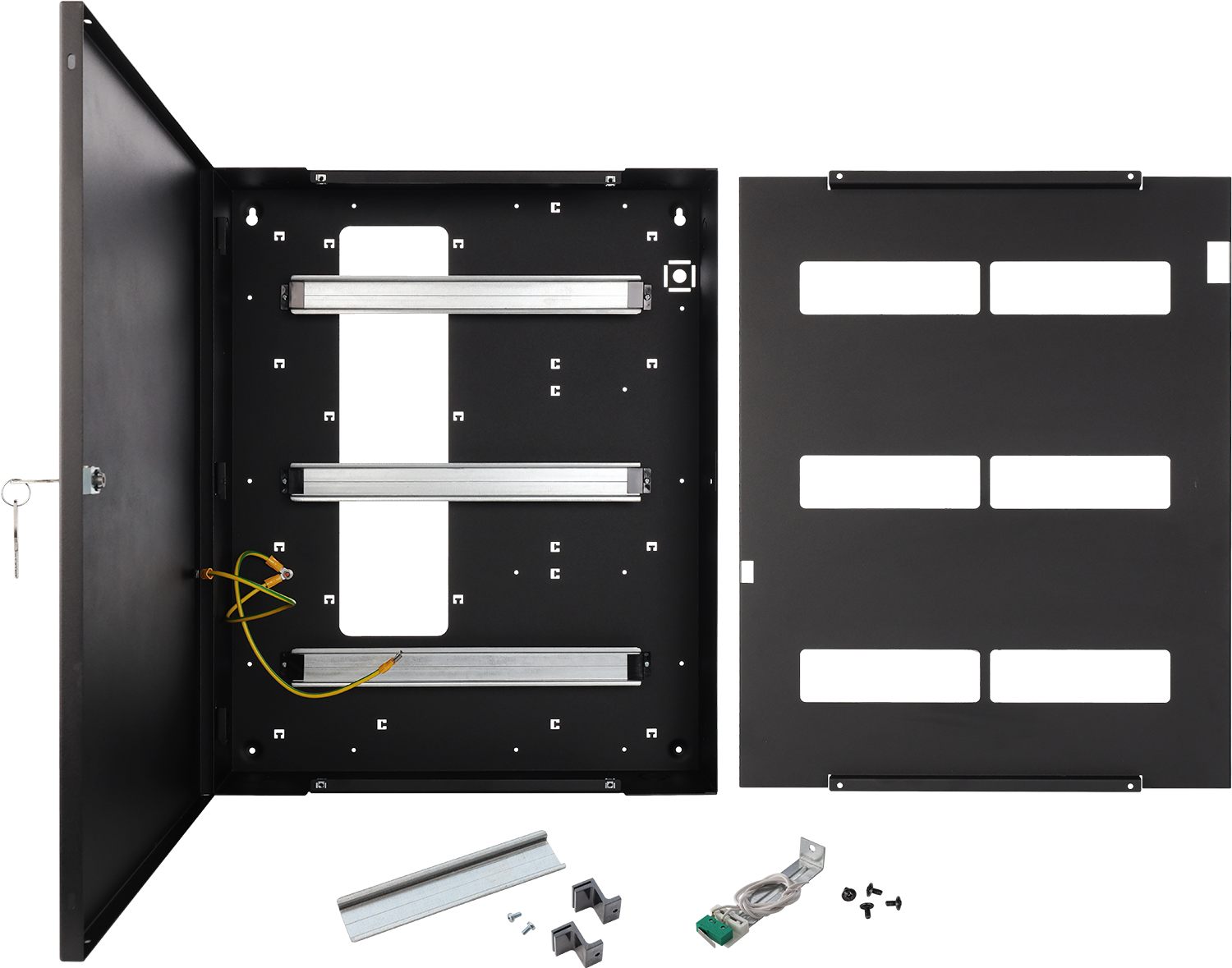

3 x 317mm 3 x 2 (6 full-size ICT modules 156x46mm) |
| Installation | surface-mounted |
| Material |
steel DC01, RAL9005 (black), metallic |
| Protection grade EN60529 | IP 20 |
| Warranty | 2 years |
| Notes |

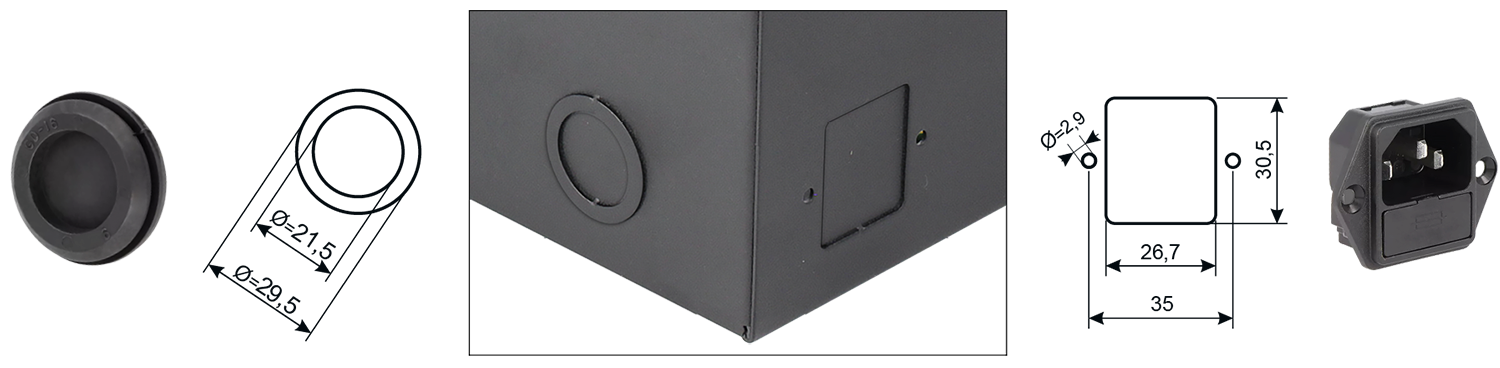

- knockouts: Φ21,5 / Φ29,5 mm (for cable glands) - knockout: 26,7 x 30,5 mm (for IEC C14 socket with fuse) |
| Accessories | DIN rail 150 mm + 2 brackets |
